Datalogger

e016 NanoSUM
Data Acquisition and Transmission System
The NanoSUM acquisition and communication system was designed by SIAP+MICROS as a compact and economical acquisition/communication system to be associated with sensors or systems, with serial output. Depending on the type of application, it can be housed in different containers, with or without an integrated battery power supply system. In all cases, both the frequency of data acquisition and the frequency of sending them with FTP protocol can be programmed on the device. NanoSUM can also be equipped with an integrated GPS receiver in order to georeference the data or to synchronize the internal clock. The system has been designed to have very low consumption and to be used also in systems without external power supply. Peculiarities of the product: The NanoSUM acquisition and communication system has been designed for interfacing with systems and sensors with RS232, RS485, RS422 and SDI-12 type serial outputs. Its basic functions are data acquisition and transfer via the public telephone network (xG). The device can be programmed both for recording the data exchanged on the serial ports, as well as commands for interfacing with intelligent systems and sensors can be implemented, subject to the availability of the relative documentation or the use of standard protocols (MODBUS and SDI -12). The device is able to power (ON/OFF) external equipment at a voltage of 5 or 12 Vdc. NanoSUM is equipped with two digital inputs to which a sensor with pulse output can be connected (e.g.: rain gauge). The device is also equipped with two digital outputs for enabling external power sources.

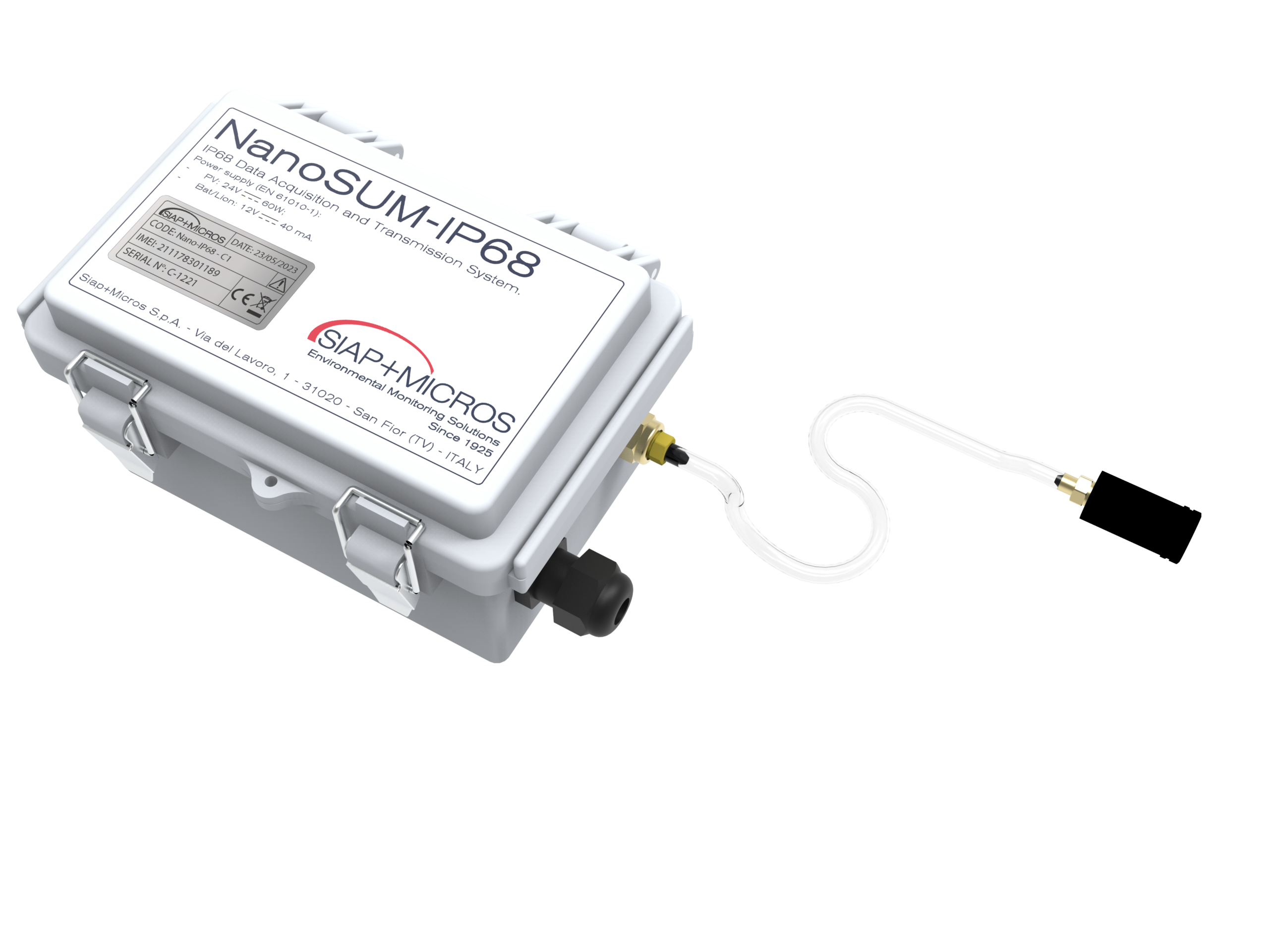

e016 NanoSUM IP68
IP68 Data Acquisition and Transmission System
The NanoSUM acquisition and communication system was designed by SIAP+MICROS as a compact and economical acquisition/communication system to be associated with sensors or systems, with serial output. Depending on the type of application, it can be housed in different containers, with or without an integrated battery power supply system. In all cases, both the frequency of data acquisition and the frequency of sending them with FTP protocol can be programmed on the device. NanoSUM can also be equipped with an integrated GPS receiver in order to georeference the data or to synchronize the internal clock. The system has been designed to have very low consumption and to be used also in systems without external power supply. Peculiarities of the product: The NanoSUM acquisition and communication system has been designed for interfacing with systems and sensors with RS232, RS485, RS422 and SDI-12 type serial outputs. Its basic functions are data acquisition and transfer via the public telephone network (xG). The device can be programmed both for recording the data exchanged on the serial ports, as well as commands for interfacing with intelligent systems and sensors can be implemented, subject to the availability of the relative documentation or the use of standard protocols (MODBUS and SDI -12). The device is able to power (ON/OFF) external equipment at a voltage of 5 or 12 Vdc. NanoSUM is equipped with two digital inputs to which a sensor with pulse output can be connected (e.g.: rain gauge). The device is also equipped with two digital outputs for enabling external power sources.

e018 DA18K
Data Acquisition and Transmission System
The DA18K datalogger, designed for environmental and meteorological-hydrological monitoring systems, is able to directly acquire sensors, analyzers, chemical-physical probes, actuators, and many other devices through a wide variety of analog and digital interfaces. Through the serial and LAN ports it is possible to directly interconnect various communication systems such as free or licensed band radiomodems (UHF, VHF, HF, SRD,…other), GPRS, UMTS, LTE modems, routers, satellite devices (Iridium, Inmarsat, Meteosat, Goes,..other) or wired lines for remote connection.
A cutting-edge datalogger with very low consumption, produced in Italy, native with Modbus RTU communication protocol and Windows CE operating system. The DA18K is an extremely precise, robust and highly durable device, which can be installed at any latitude, longitude and weather condition, from -40 °C to +80 °C, from African deserts to the Amazon forest.
The DA18K was designed as an independent module, open and usable in all application areas even other than meteorology and hydrology. For this reason, in addition to the DAK programming wizard software supplied together with the datalogger, the possibility of programming customized functions has been provided, using available and open libraries, and functions and/or procedures that allow interoperability with third-party systems.
The high number of interface ports makes it very flexible and modular both towards interconnection to sensors in the field and towards communication systems or high-level interfaces (for example: PLC, PC).

e022 DA22KE
Data Acquisition and Transmission System
This data logger is designed for environmental and meteo-hydrological monitoring systems and, through a wide variety of analog and digital interfaces, it is able to directly acquire sensors, analysers, chemical-physical probes, actuators, and many other devices. Through the serial and LAN ports it is possible to directly interconnect various communication systems such as radio modems in free or licensed band (UHF, VHF, HF, SRD,…other), GPRS, UMTS, LTE modems, routers, satellite devices (Iridium, Inmarsat , Meteosat, Goes,..other) or wired lines for remote connection.
A cutting-edge data logger with very low consumption, produced in Italy, native with Modbus RTU communication protocol and embedded Linux operating system.
The DA22KE is an extremely precise, robust and highly durable device which can be installed at any latitude, longitude and weather condition, from -40°C to +80°C, from the African deserts to the Amazon forest.
The DA22KE has been designed as an independent, open module that can be used in all application areas, even other than meteorology and hydrology. For this reason, in addition to the DAK programming wizard software supplied with the data logger, it has been possible to program customized functions, using available and open libraries, and functions and/or procedures that allow interoperability with third-party systems.
The large number of interface ports makes it very flexible and modular both towards interconnection to sensors in the field and towards communication systems or high-level interfaces (for example: PLC, PC).
DA22KE represents the latest evolution of the proven DA family of S+M dataloggers, characterized by extensive reliability tested on thousands of products.

e020 MicroSUM
Data Acquisition and Transmission System
MicroSUM is a compact acquisition unit for environmental and meteo-climate monitoring stations, and it can directly manage at the same time weather sensors, analyzers, chemical-physical probes and other devices thanks to its analog, digital and pulse electrical outputs. Its main feautures are the ease of use and configuration, as well as the efficiency of data management. It is at the same time a very versatile device, being MicroSUM a very perfomant and suitable datalogger for every kind of meteorological application. It has been designed to match the most various needs of data acquisition, processing and transmission, from the simplest ones related to single weather stations, to the most complex concerning monitoring networks managed by remote control centers. The very low power consumption represents another relevant outstanding feature, making it particularly suitable for applications in harsh environments with reduced insolation. Furthermore, an open source FreeRTOS operating system makes the device very easy to programme. MicroSUM is extremely compact and terminal blocks are incorporated in a single element, allowing all the sensors connections to be very easy to handle, along with the power supply battery charger. The display is equipped with a Joystick to facilitate the data acquisition management. MicroSUM can be provided also in the LTE version (UMTS/LTE modem incorporated), thus reducing the energy consumption and at the same time offering a more affordable device, being the two products integrated in a single one. It is possible to connect additional communication devices such as UHF radios, satellite or short-range radios in free band, and this option is available for both versions of MicroSUM.

e021 MegaSUM
Data Acquisition and Transmission System
The MegaSUM has been designed to be a perfect solution to be used as a monitoring station datalogger which do not require extremely high computational capacity but able to acquire data from numerous sensors of many different supported types at the same time. In fact, the unit can be considered as more powerful and extended version of the MicroSUM logger, with a wider range of serial communication interfaces as well as a built-in Ethernet port. The FreeRTOS Operating System ensures power efficiency of the unit even during intense operation. The datalogger can manage multiple data transmission devices for data sending such as radio-modems in free or licensed band (UHF, VHF, HF, SRD, …), GPRS/UMTS/LTE/5G modem/router, satellite equipment (Iridium, Inmarsat, Meteosat, Goes, …).
Furthermore, the datalogger has been thoroughly designed to ensure maximum performance even in the harshest climate conditions, ranging from the typical coldest temperatures of the high altitudes, to the warmest of the tropical and desert areas.
The device is supplied with the DAK configuration wizard software, but it has been possible also to program customized applications using available open libraries, functions and / or specific procedures for the interoperability with third-party systems.

GigaSUM
Data Acquisition and Transmission System
The GigaSUM is the most powerful data acquisition unit designed by Siap+Micros in terms of computational capacity. It features embedded Linux operating system to broaden the company’s product line and meet new market needs. This device is the result of years of improvements in the development of flexible and reliable solutions for the acquisition, storage and processing of environmental data. The GigaSUM is equipped with a wide variety of analog and digital communication interfaces for connecting monitoring sensors and probes, as well as digital outputs for activating external devices. The unit is able to manage multiple data transmission devices for remote data transmission such as free or granted band radio modems (UHF, VHF, HF, SRD, …), GPRS/UMTS/LTE modem/router/ 5G, satellite devices (Iridio, Inmarsat, Meteosat, Goes,…). The data logger is fully compliant with the most used standard communication protocols such as TCP-IP, FTP, SDI-12, MODBUS-RTU and MODBUS-TCP/IP.
Furthermore, the data logger has been carefully designed to guarantee maximum performance even in the most extreme climatic conditions, ranging from the coldest temperatures typical of high altitudes, to the hotter ones of tropical and desert areas.
The device is supplied with the DAK wizard configuration software, but it was also possible to program custom applications using available open libraries, specific functions and/or procedures for interoperability with third-party systems.
